Silicone Plates for CLT Industry Vacuum Laminators & Silicone Sheets for Heat Transfer Machines | Gray High Tear-Resistant Silicone Skins

Rubber sheet, silicone sheet, silicone tube series

Availability:

Quantity:



Inquire Add to Basket

Model:
Silicone board for CLT industry
Brand:
qiniu
Code:
Silicone board for CLT industry

Product Description

Silicone Sheets for Wood Door Vacuum Laminating Machines

Woodworking Vacuum Membrane Presses

We are a professional vacuum silicone membrane manufacturer with 23 years of production experience. Our vacuum silicone membranes have been successfully adapted to mainstream brands of vacuum presses such as Woodtec and Sarmax.In the CLT (Cross-Laminated Timber) production and processing stages, our silicone membranes offer the following outstanding advantages and features:

1.Uniform Pressure Distribution & Excellent Resilience: Minimizes surface indentations and pressing defects on CLT panels.

2.High-Temperature Resistance & Adhesive-Free Isolation Layer: Withstands a constant temperature of 180°C (customizable to over 200°C for special requirements). It will not contaminate wood or adhesives, and is eco-friendly with zero odor.

3.Durable Cushioning Material: Boasts a significantly longer service life compared to conventional rubber pads or paper-based cushioning materials.

Specific Model Parameters are as follows:

Model

Type

Hardness

Tensile Strength

Elongation at Break

Tear Strength (Type B)

Thickness

Length

Width

YH400

1

High Tear-Resistant Silicone Sheet

46A

10.40Mpa

5.44%

45.66KN/M

1-5mm

Unlimited / No Limit

0-5500mm

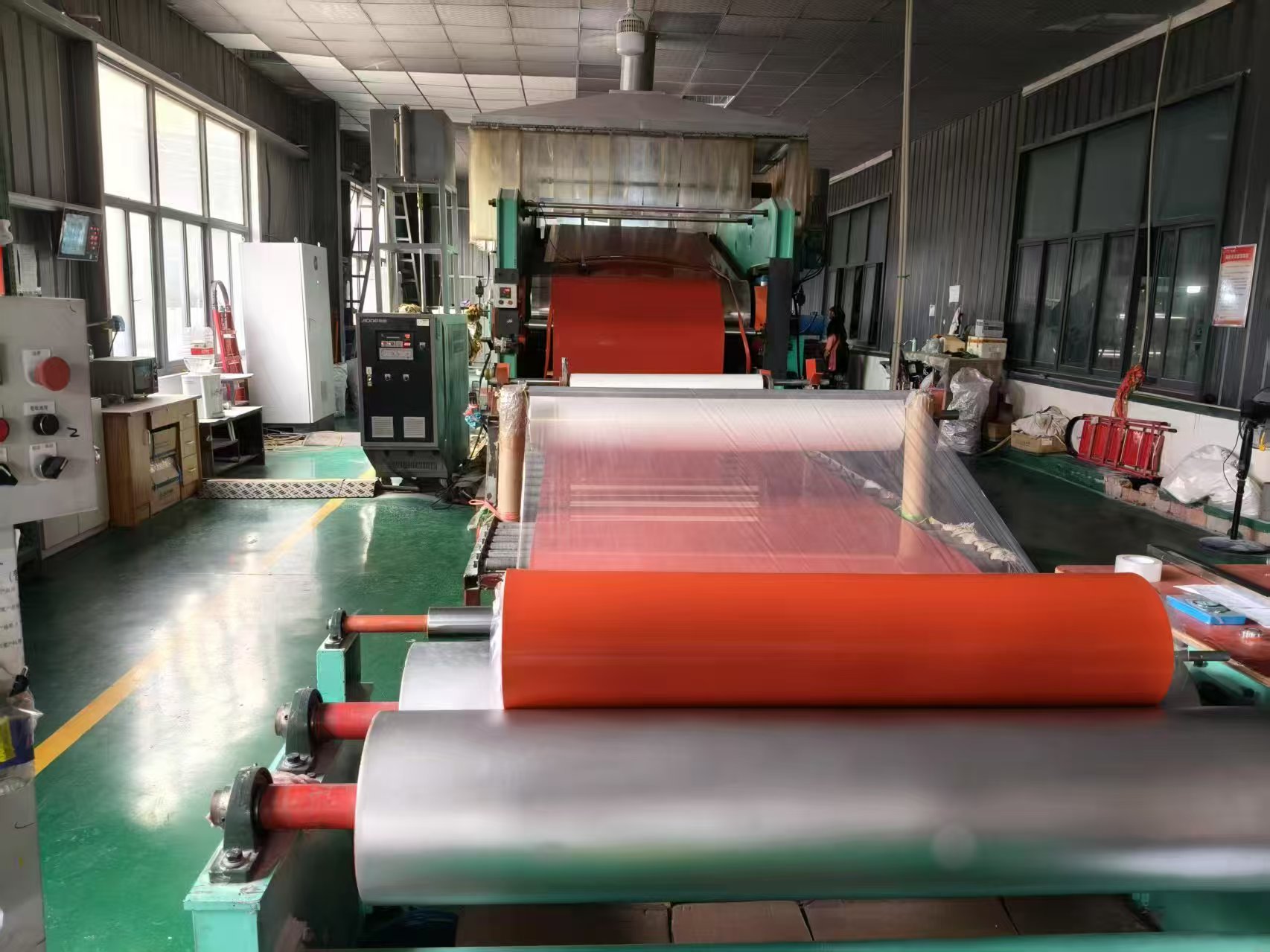

Silicone Sheet Production Equipment：

Silicone board for CLT industry

Product Performance:

PROPERTIES	VALUES
Voltage Resistance	4.0 KV – 10 KV
Operating Temperature	-60°C – 250°C
Specific Gravity	1.3
Hardness	40 – 60 Shore A
Elongation	300% – 750%
Tear Strength	46 kN/m

Conventional Sizes

Product Name	Specifications	Color	Remarks
Laminator Silicone Sheet	1200mm width × 2500mm length × (2mm–5mm) thickness	Natural Color	Custom special sizes available
	1300mm width × 2600mm length × (2mm–5mm) thickness	Natural Color
	1400mm width × 2700mm length × (2mm–5mm) thickness	Natural Color
	1500mm width × 2700mm length × (2mm–5mm) thickness	Natural Color
	1600mm width × 2800mm length × (2mm–5mm) thickness	Natural Color
	1700mm width × 3100mm length × (2mm–5mm) thickness	Natural Color
	2000mm width × 4500mm length × (2mm–5mm) thickness	Natural Color
Notes: This sheet is made of eco-friendly silicone raw material, compliant with SGS standards and meets export requirements. Width options: 1200mm, 1300mm, 1400mm … up to a maximum width of 5500mm. Length: Unlimited; can be cut to any size per customer request. Thickness options: 2mm, 3mm, 4mm, 5mm … up to a maximum thickness of 15mm. Color: Natural transparent (stock items are natural color; custom color matching is available for bulk orders). Hardness: 45–70 Shore A. Temperature resistance: -60°C to 250°C. Please contact customer service for consultation if you have other unspecified special requirements.

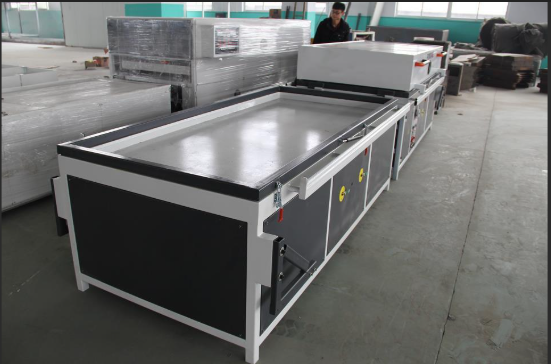

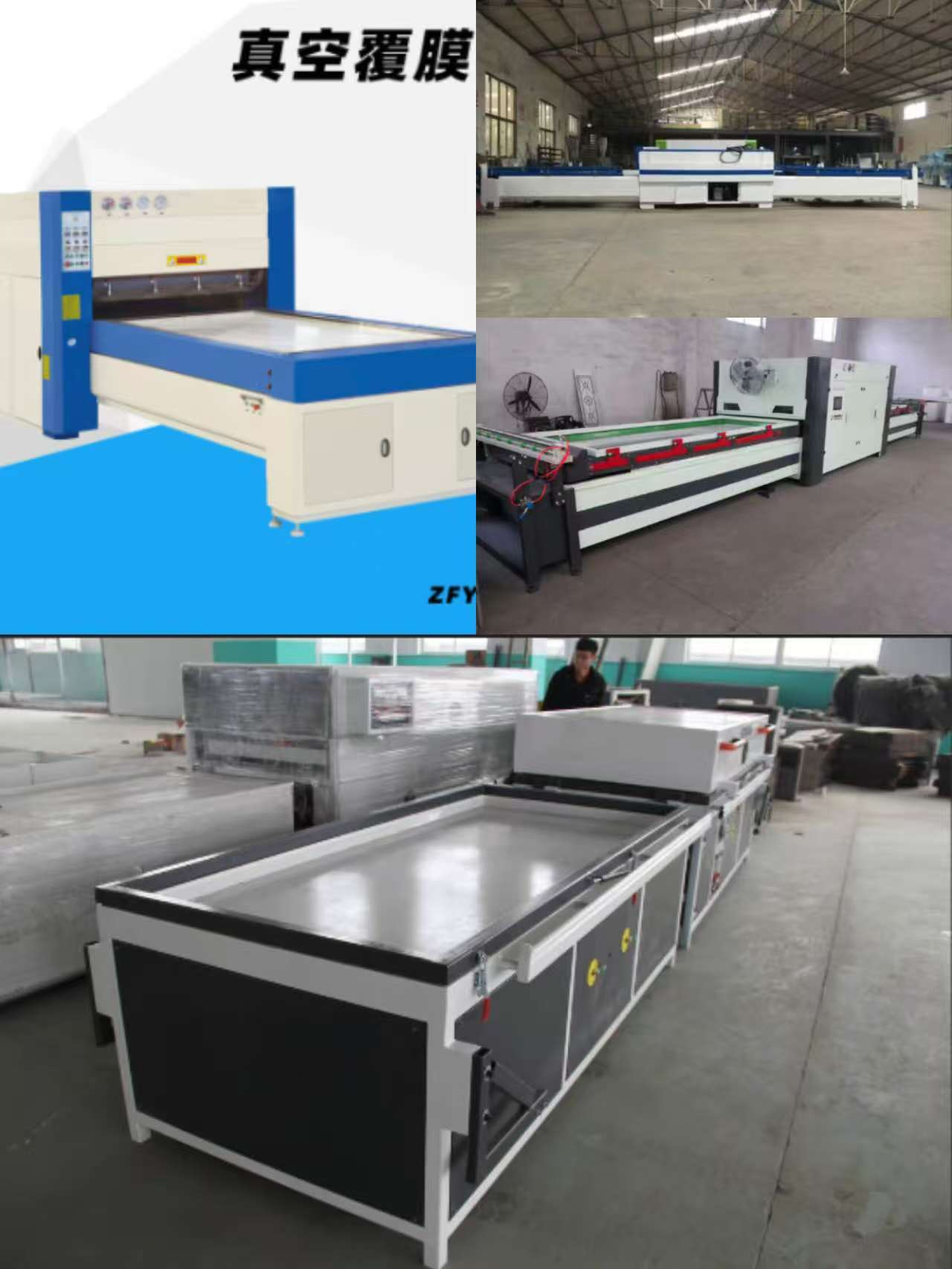

Applicable Machines:

1、Wooden door vacuum laminator 2、Wood industry vacuum veneering machine 3、Vacuum blister film laminating machine
