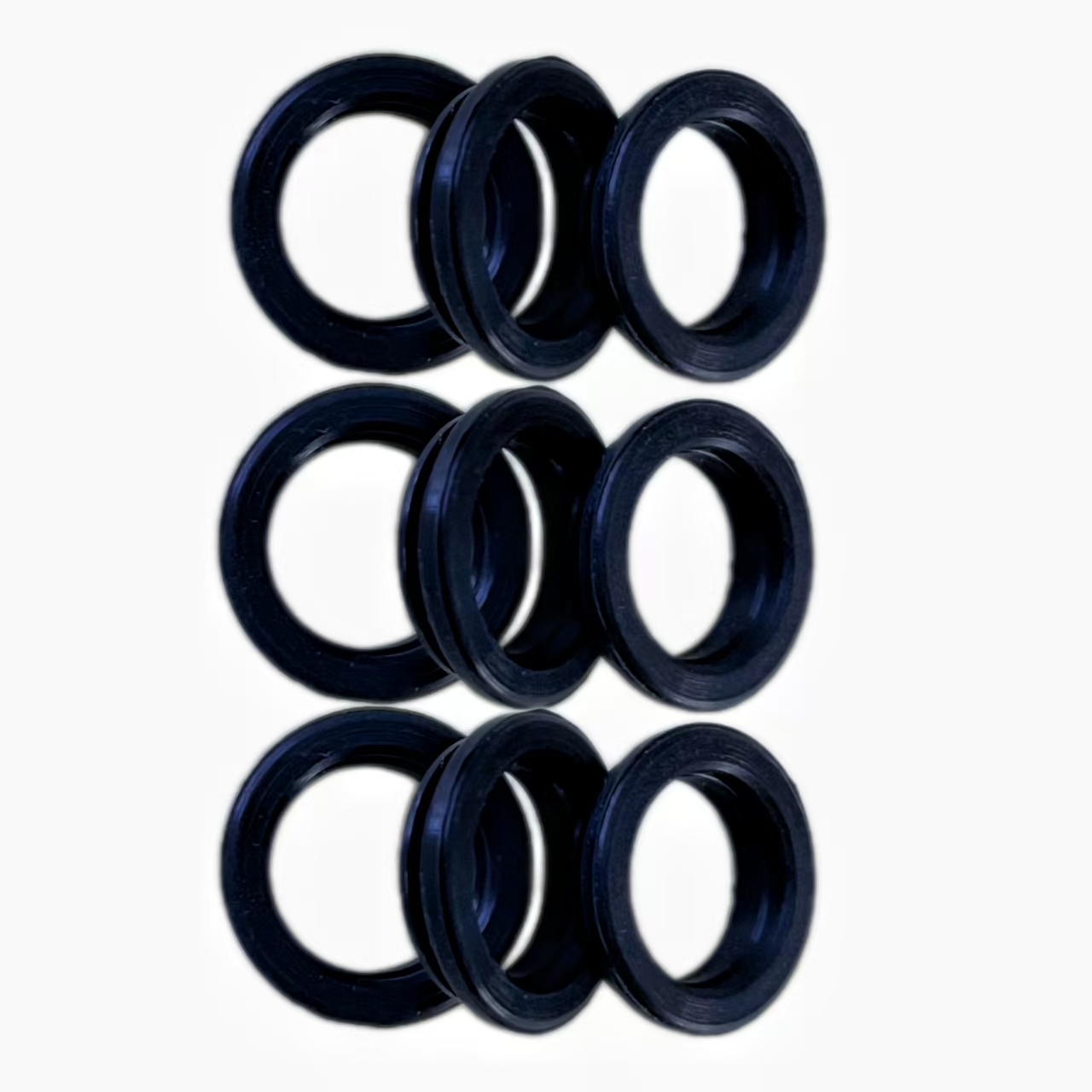

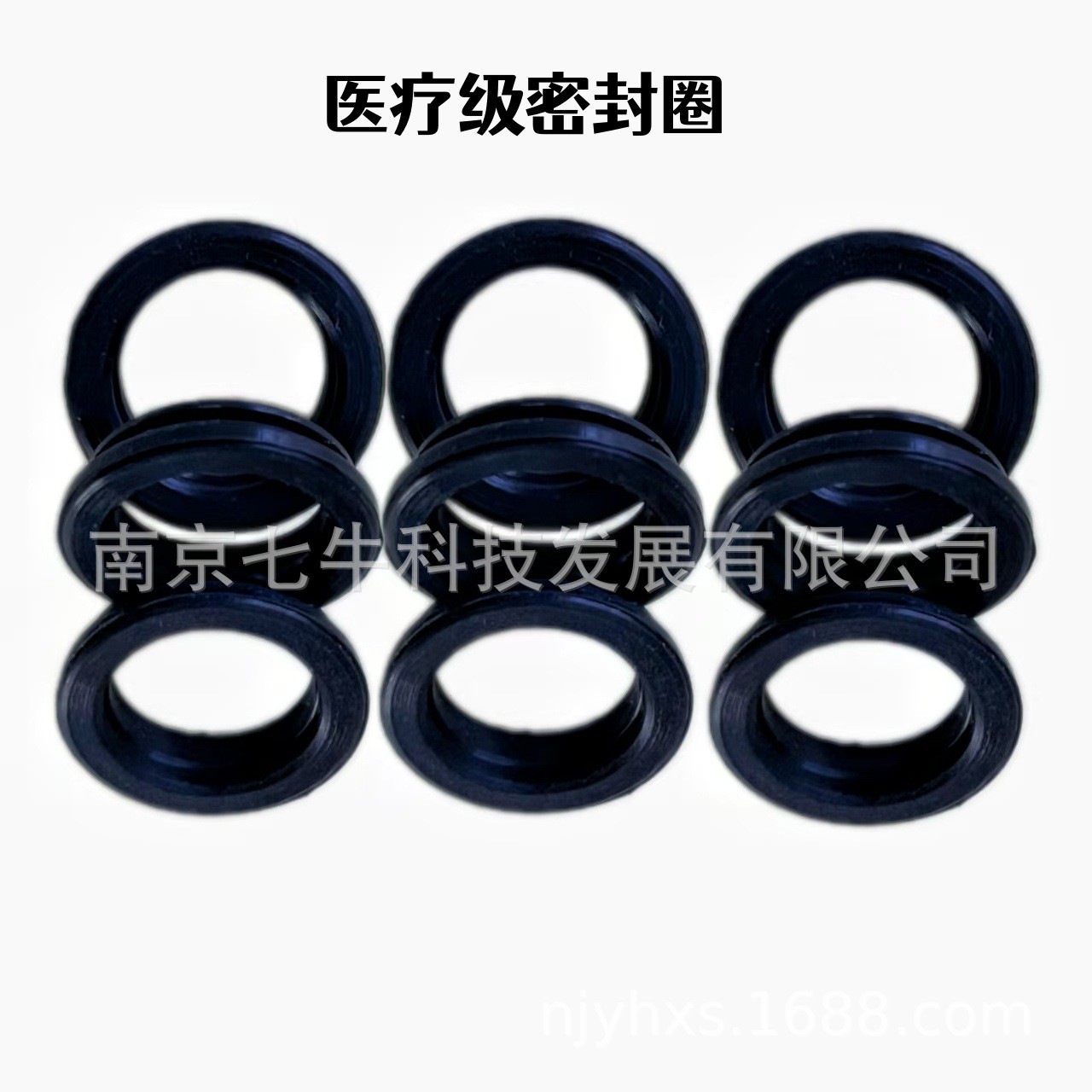

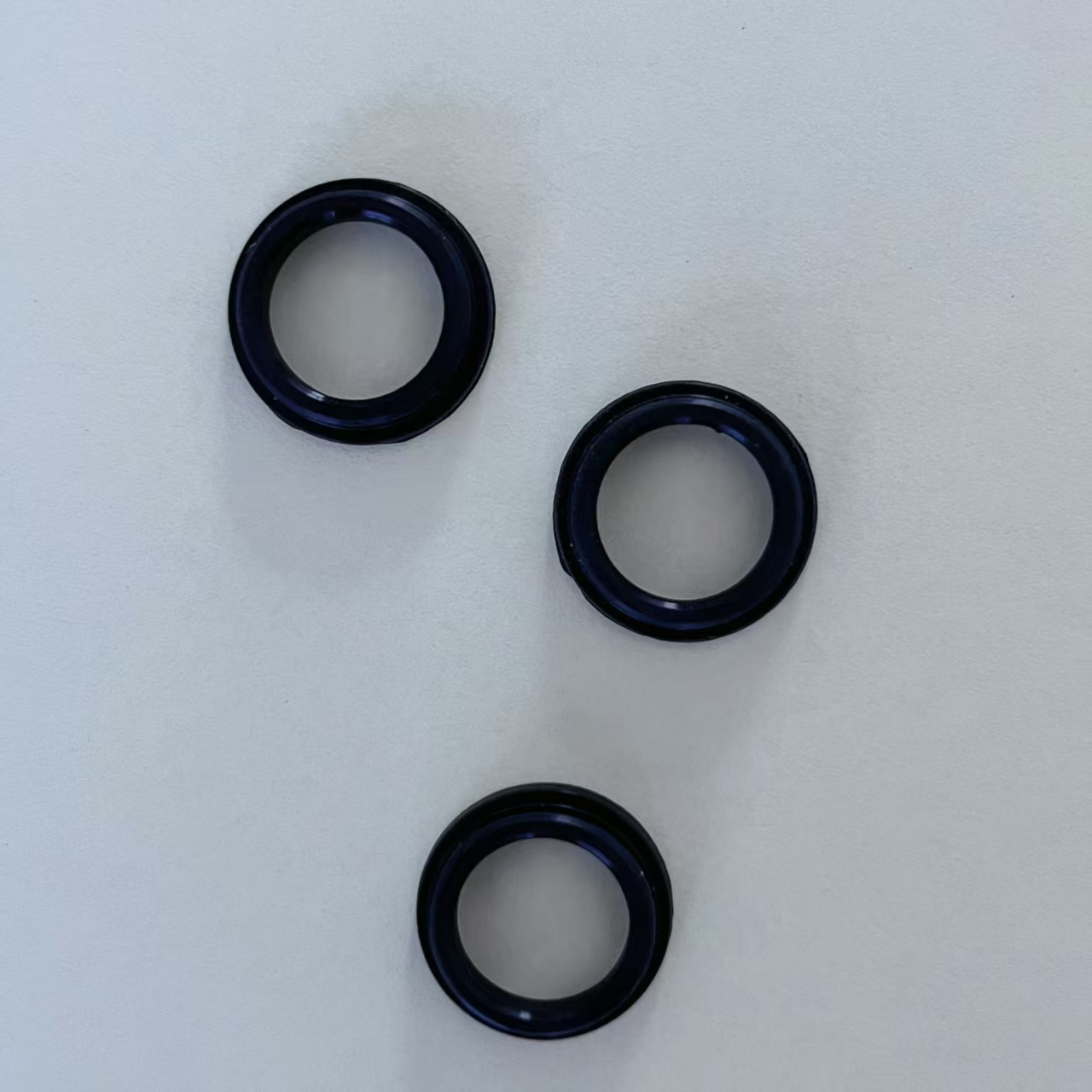

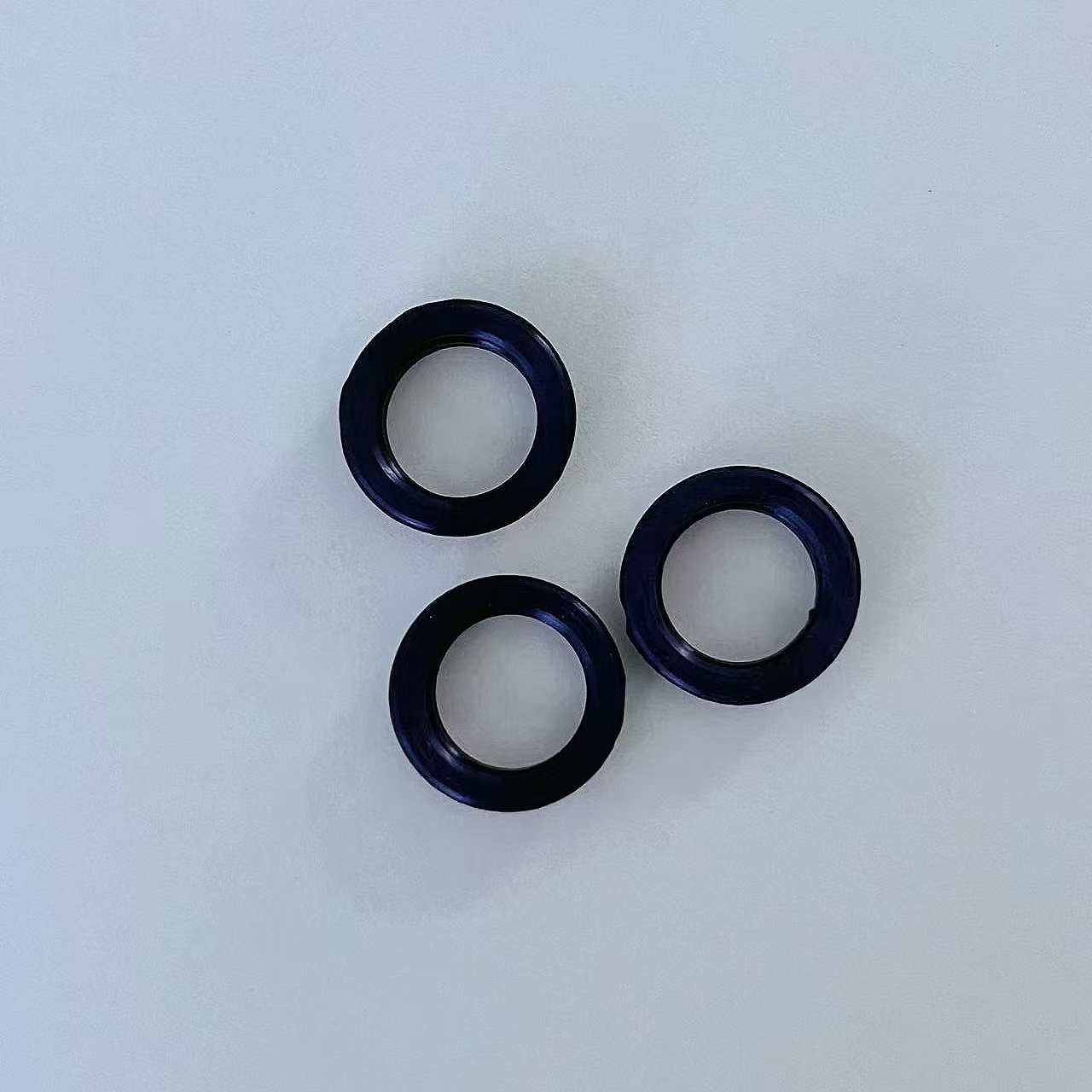

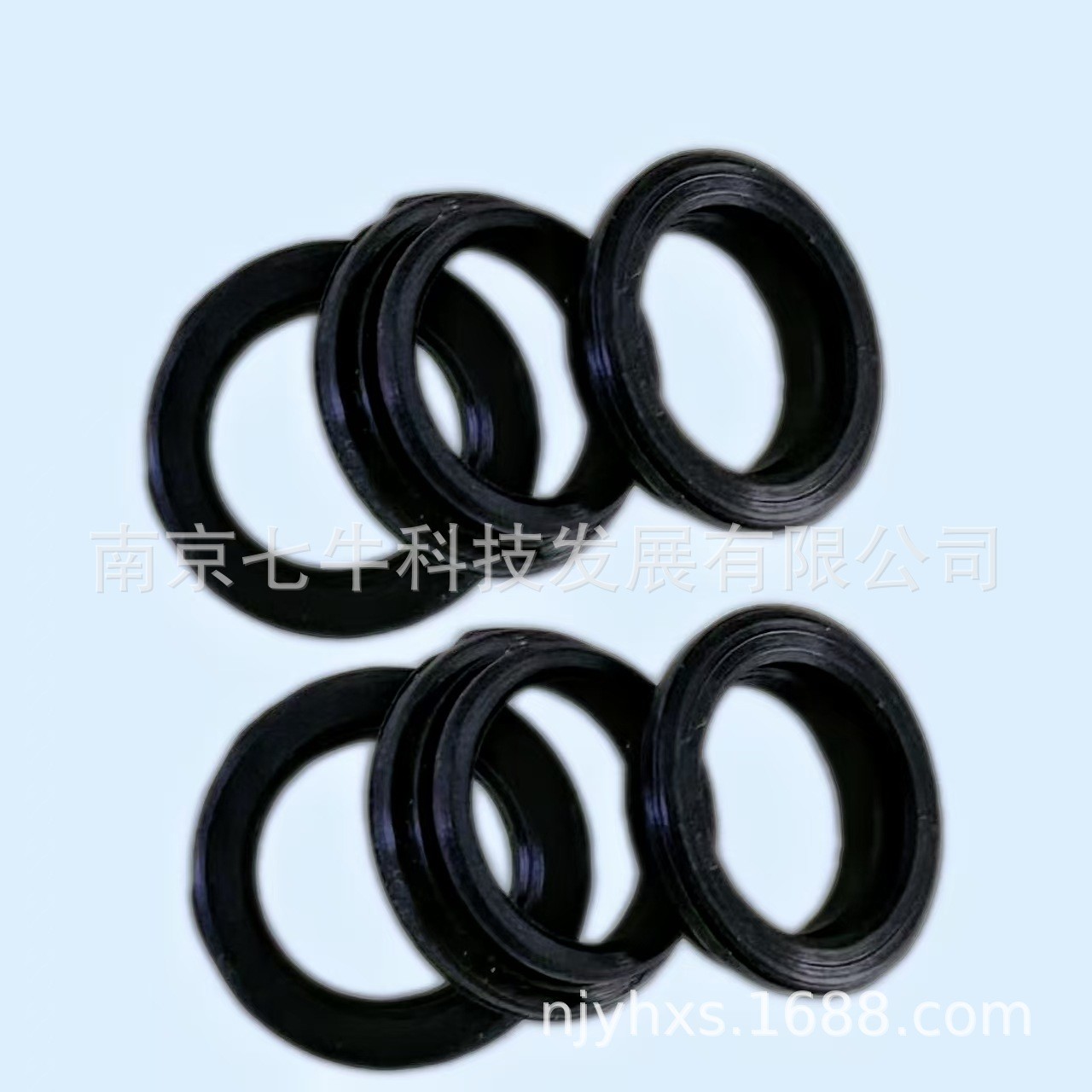

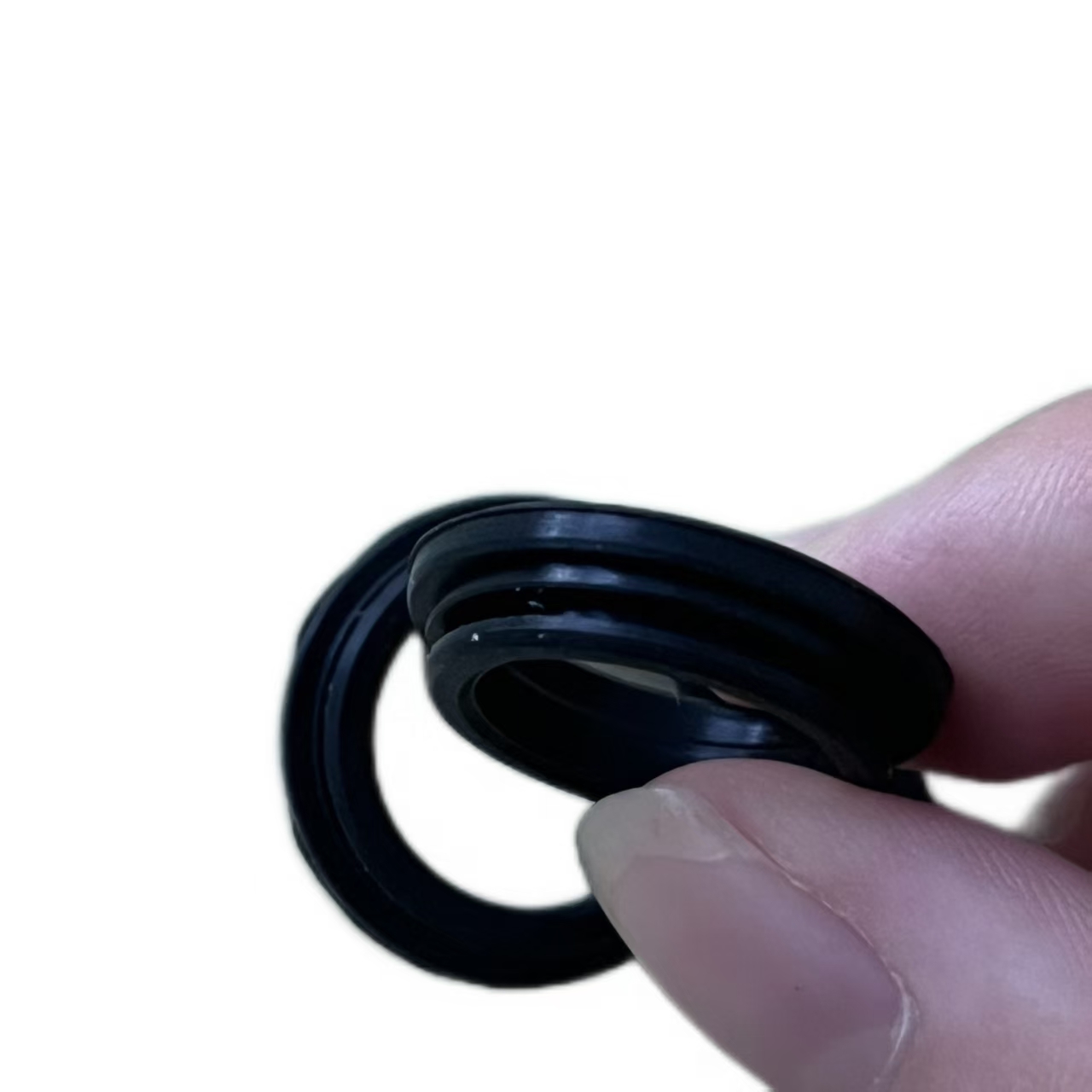

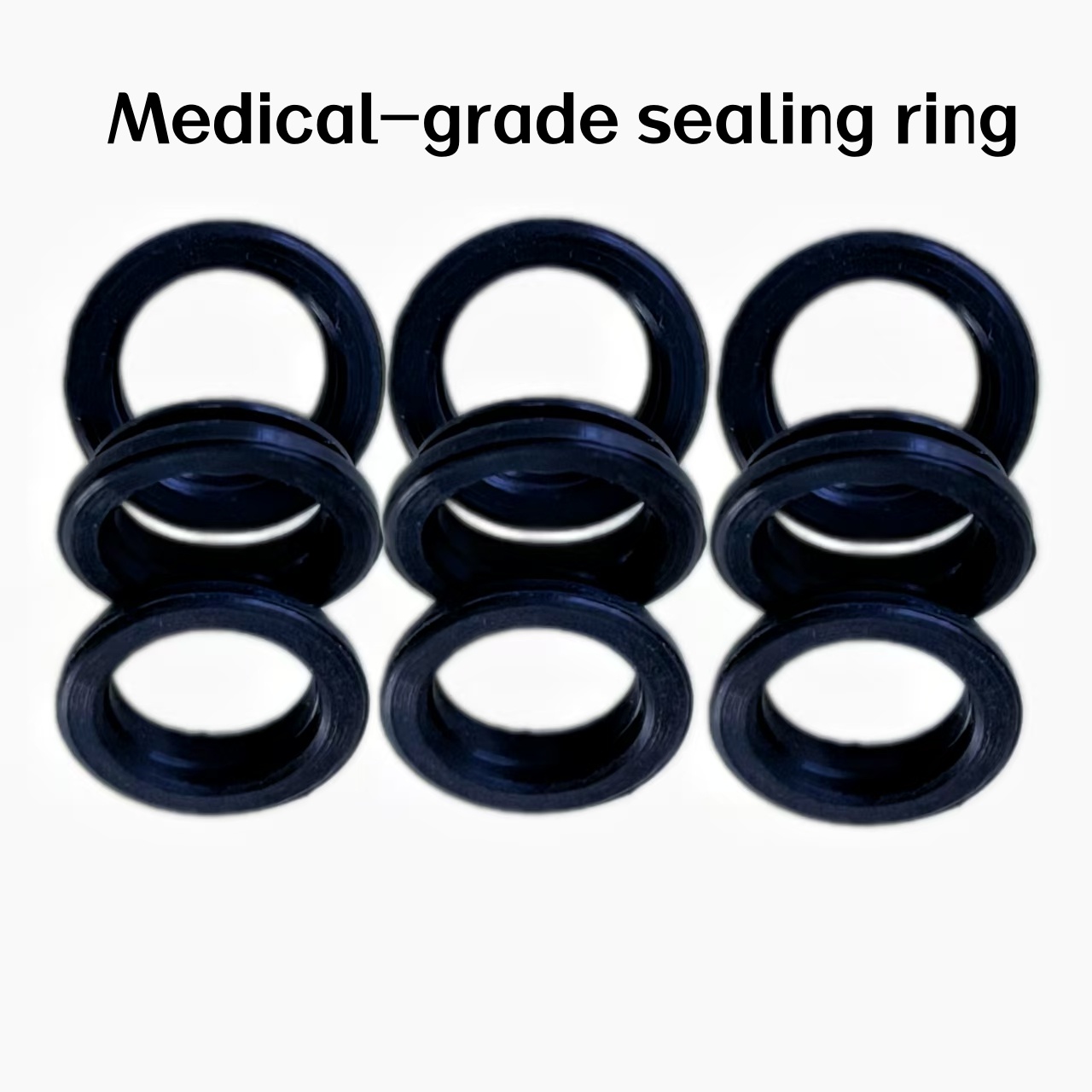

Silicone Rings for Medical Cameras

I. Raw Material Description

The core raw material for sealing rings of medical device cameras is 60 Shore A medical-grade silicone, a high-quality elastic material exclusively for medical devices that fully complies with medical biosafety standards and meets the stringent service requirements of various medical equipment. The material hardness is precisely controlled at 60 Shore A, balancing excellent elasticity and structural support. It tightly fits equipment gaps to deliver high-efficiency sealing, while avoiding issues such as installation cracking and sealing failure caused by excessive hardness, or deformation and loosening resulting from overly soft texture.

This medical silicone raw material features core advantages including non-toxicity, odorlessness, excellent biocompatibility, resistance to high and low temperatures, anti-aging properties, and resistance to corrosion by medical disinfectants. It releases no harmful substances and causes no irritation to human tissues. It withstands standard medical sterilization methods such as high-temperature high-pressure sterilization and ethylene oxide sterilization, with no yellowing, deformation, or aging failure during long-term service. Additionally, the material boasts outstanding electrical insulation, waterproof and dustproof performance. It effectively blocks erosion from water vapor, dust, body fluids and medical reagents, providing all-round protection for precision optical and electronic components of cameras, and satisfying the long-term, safe 3.andstable operation demands of medical devices. All raw materials undergo qualification testing before 4.warehousing to ensure full compliance, safeguarding the medical safety and consistent quality of finished products from the source.

II. Raw Material Performance Parameters

III. Production Process
Our products are manufactured by integrated compression molding of medical-grade silicone. The entire production strictly follows the Good Manufacturing Practice (GMP) for medical devices. All core production procedures are refined and standardized to eliminate manufacturing defects, ensuring high precision and consistent quality of finished products.
First, the 60 Shore A medical-grade silicone raw material undergoes sophisticated mixing. We precisely control material formulation, processing temperature and duration to achieve uniform toughness, hardness and density of silicone, thus avoiding quality defects arising from batch inconsistencies of raw materials. After that, customized high-precision molds are adopted for one-step casting via high-temperature integrated compression molding. No secondary splicing or adhesive bonding is required, which completely eliminates hidden risks such as assembly gaps, residual glue, detachment and liquid leakage. The product features a dense monolithic structure with outstanding sealing performance, and its dimensional tolerance is controlled within an ultra-tight range to perfectly fit the mounting positions of all types of medical cameras.

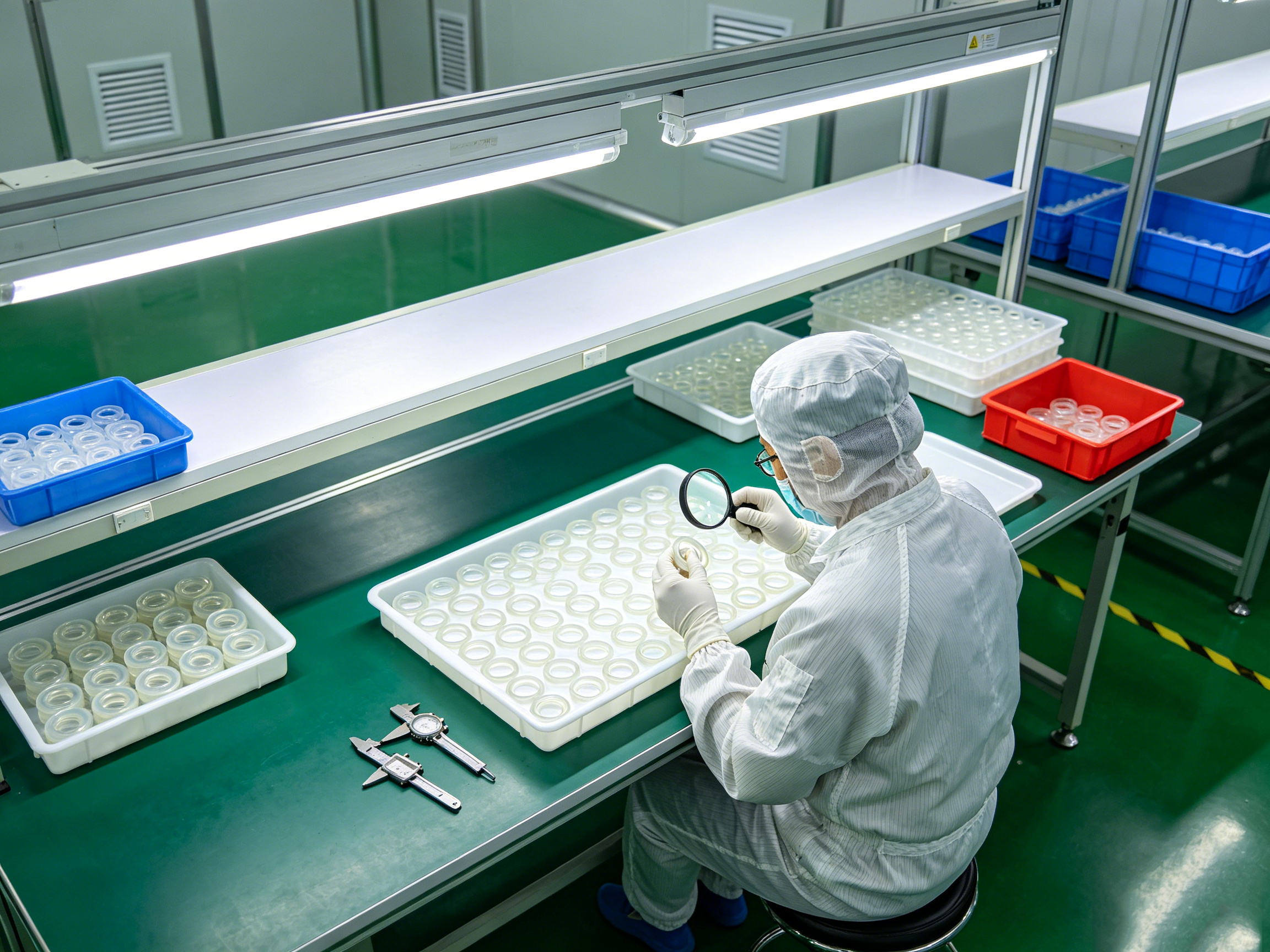

The entire manufacturing workflow is completed in a dust-free clean workshop. We maintain rigorous control over dust level, temperature, humidity and cleanliness of the workshop, effectively preventing impurities and dust particles from adhering to product surfaces and guaranteeing the cleanliness of products complies with medical standards. After molding, finished products go through edge trimming and shaping before entering the full inspection stage. Every sealing ring undergoes 100% comprehensive inspection by operators, covering dimensional accuracy, surface flatness, elasticity, sealing integrity and cosmetic flaws, with all non-conforming items rejected. Only fully qualified products are cleaned, sealed and stored in warehouses. The whole production chain is fully traceable, enabling comprehensive quality control covering every stage from production to warehousing.

IV. Product Application Scenarios

1.Endoscopic Medical Devices：Compatible with camera heads of all flexible and rigid medical endoscopes including gastroscopes, colonoscopes, laryngoscopes, hysteroscopes and laparoscopes. As the core sealing component at the lens tip, it effectively blocks infiltration of human body fluids, secretions and irrigation fluid into equipment interiors, protecting lenses, photosensitive sensors and internal circuits to prevent equipment malfunctions and cross-contamination. It suits high-frequency use with repeated sterilization during surgical procedures.

2.Medical Examination Imaging Equipment：Applicable to medical skin detectors, oral endoscopes, ENT examination devices, portable medical imaging inspection instruments and more. It delivers waterproof, dustproof and bacteria-proof sealing at lens positions, ensuring clear imaging and stable operation of examination devices to meet high-frequency clinical demands in outpatient consultations, physical screenings and routine examinations.

3.Surgical Visualization Equipment：Used in surgical shadowless lamp camera systems, intraoperative navigation cameras, minimally invasive surgical visualization devices, etc. Adapted to stringent operating room environments requiring sterility, high cleanliness and repeated disinfection, its stable sealing structure maintains consistent performance without releasing harmful substances to guarantee safe operation of surgical equipment.

4.Rehabilitation & Monitoring Medical Equipment：Matches external cameras for various medical monitoring devices and rehabilitation imaging inspection equipment. It isolates ambient dust and humid air to extend equipment service life, fitting routine medical environments such as hospital wards, rehabilitation rooms and physical examination centers.
