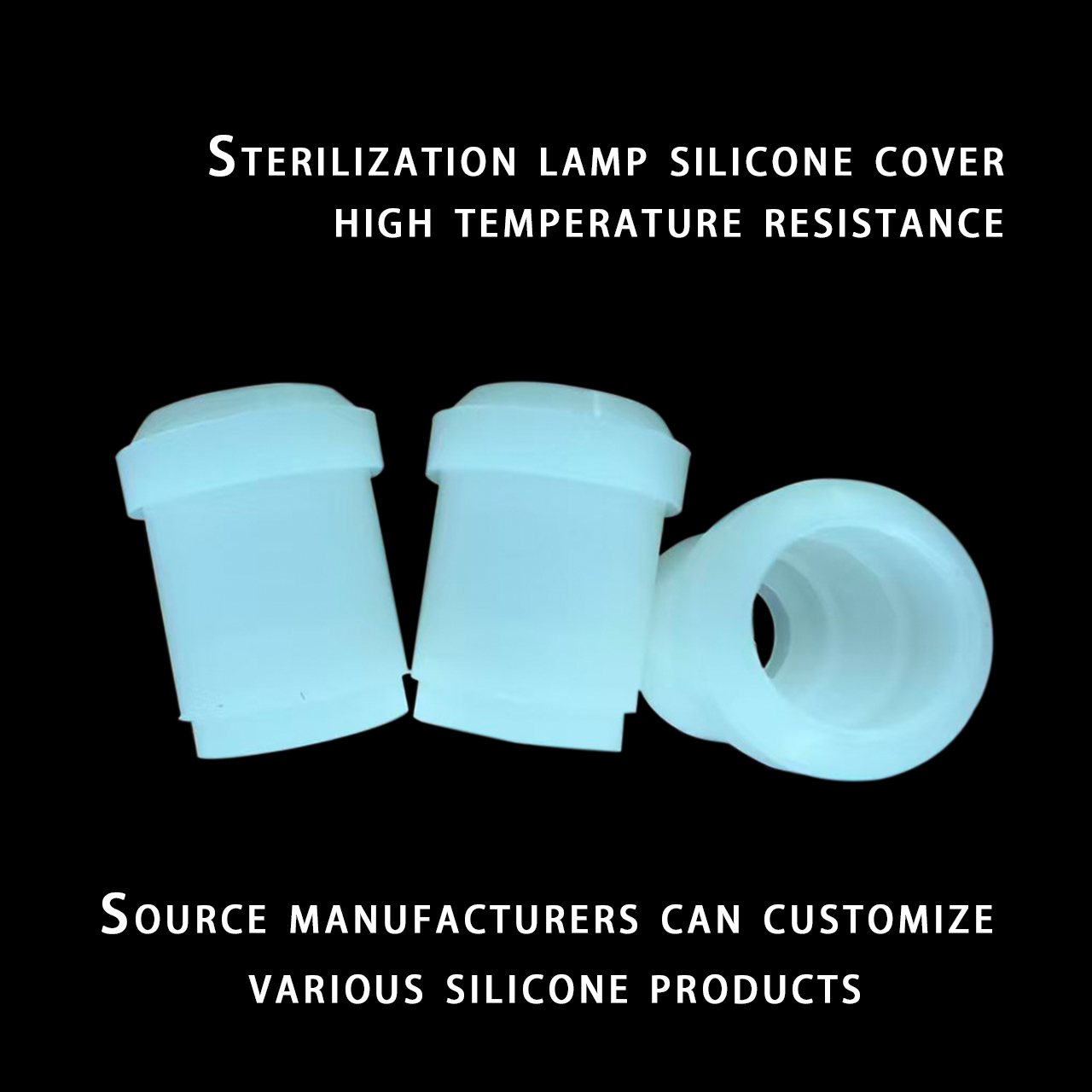

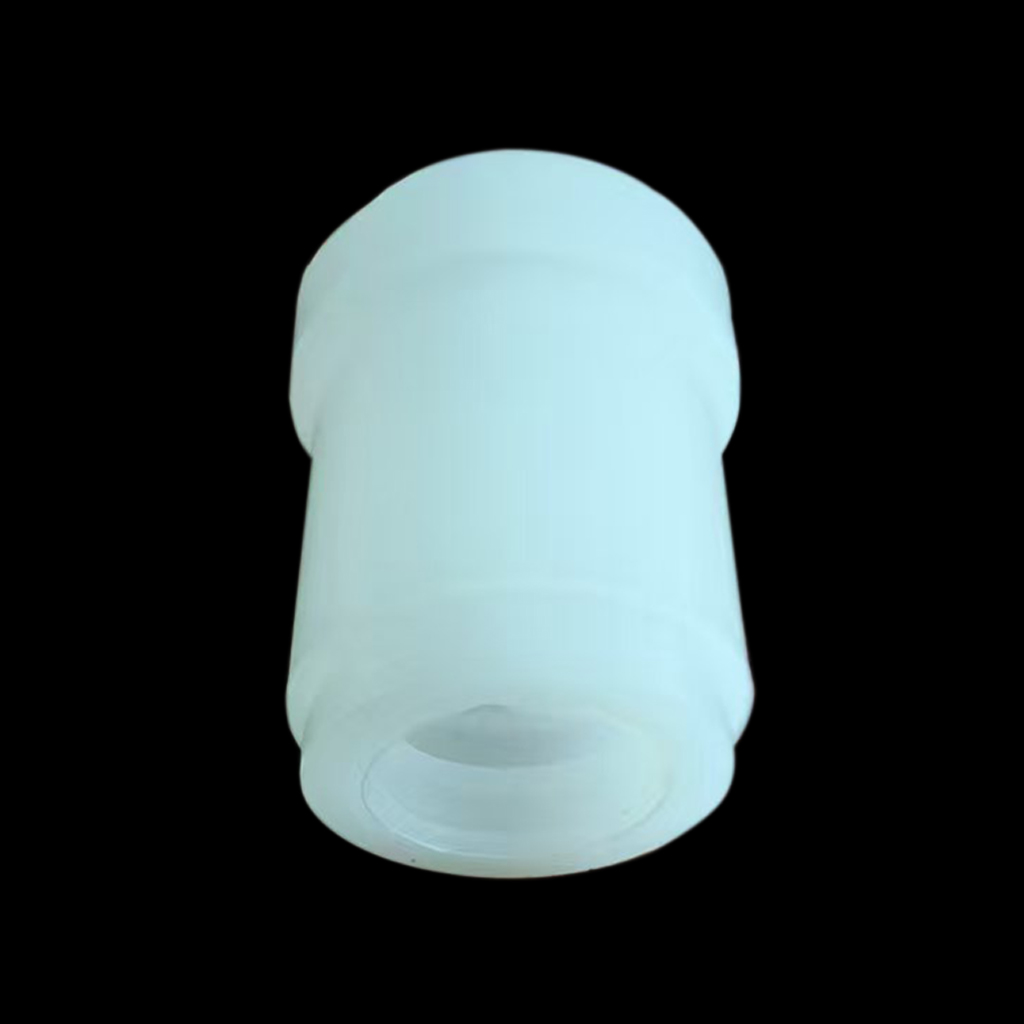

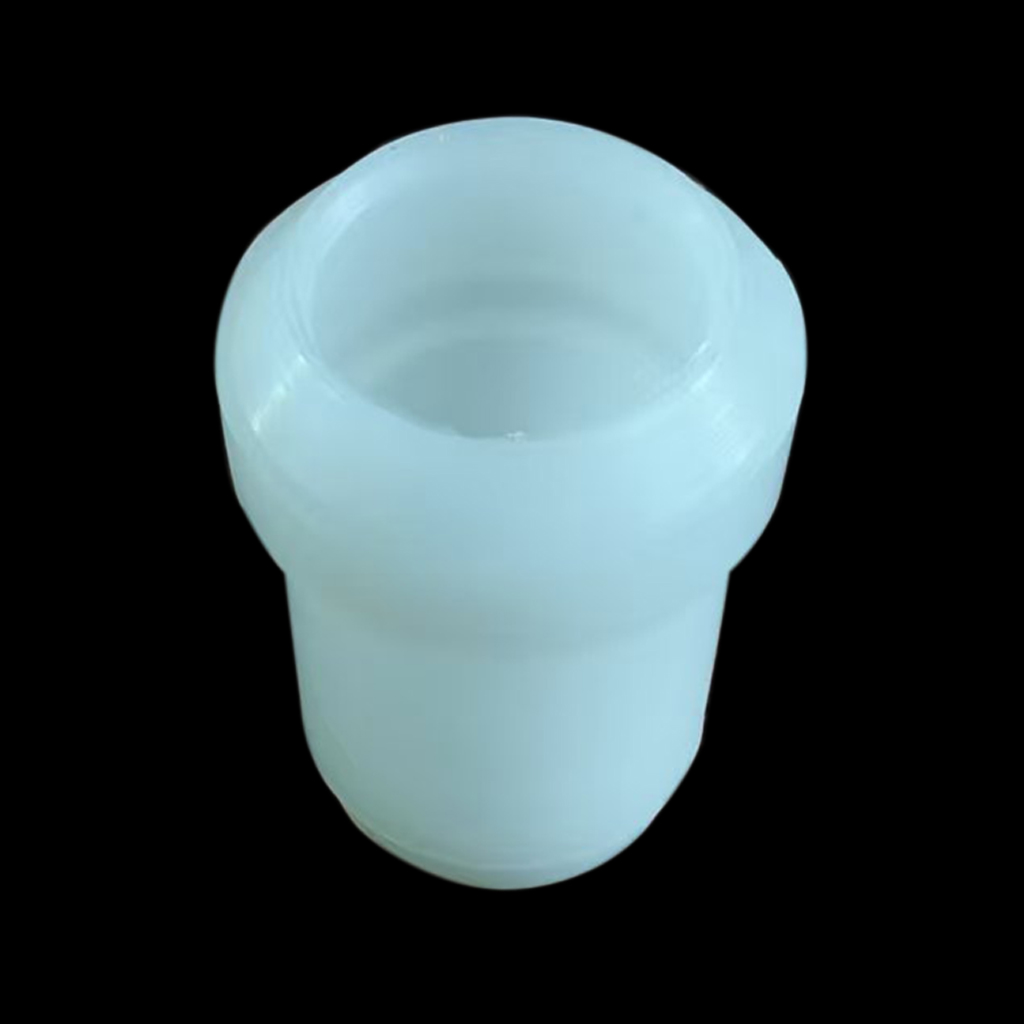

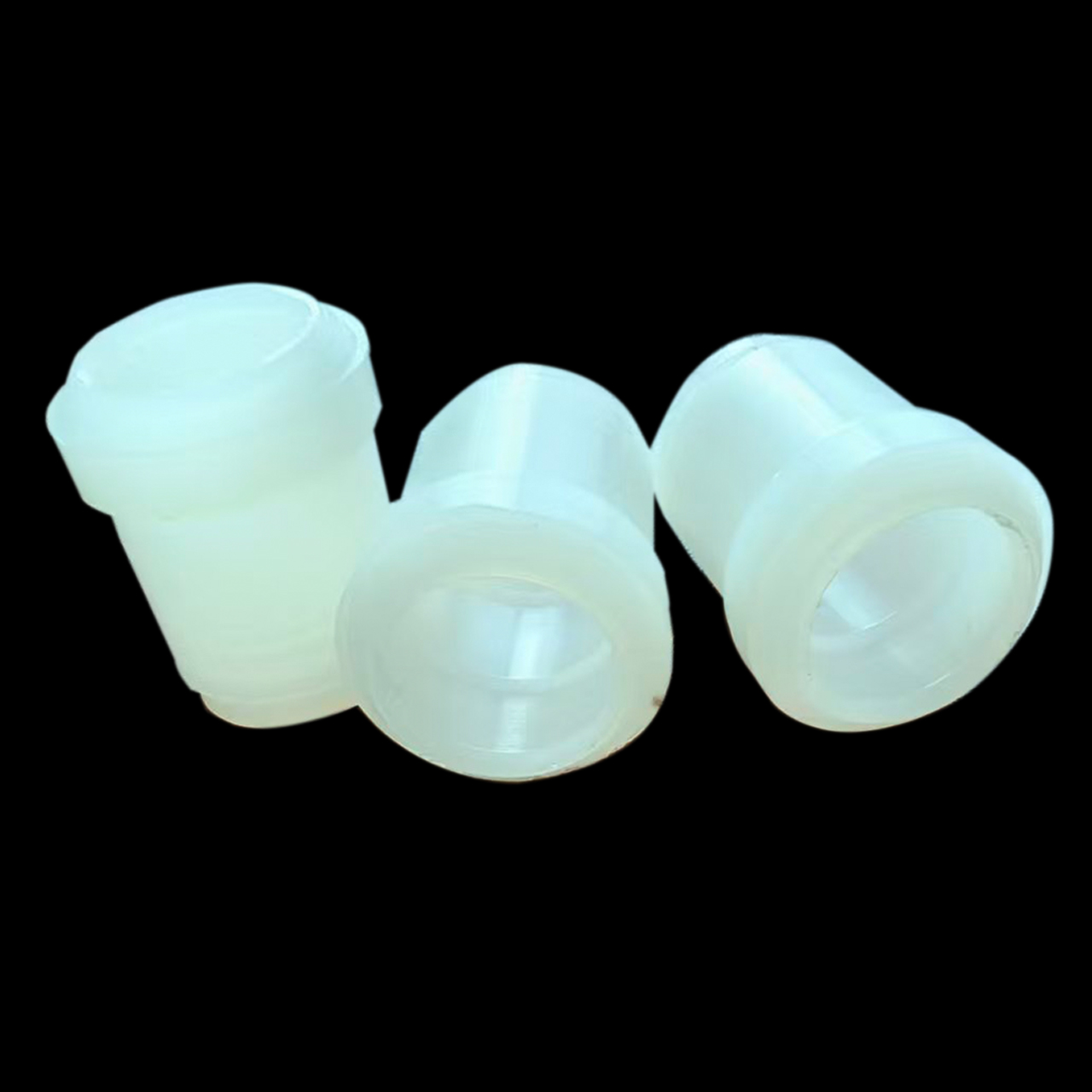

Silicone Sleeve for Germicidal Lamps (Solar Accessory)

Core Structure & Dimensions

Structural Design

• Full-coverage type: Sealed at both ends or open at one end, it can fully wrap the lamp tube. Ideal for external germicidal lamps, providing enhanced protection.

• Half-coverage/slot type: With a side opening or slot, it enables quick installation and removal. Suitable for local protection of built-in germicidal lamps.

Common Dimensions

Material Characteristics & Advantages

1. Temperature & Weather Resistance

   It can operate stably in a wide temperature range of -50℃ to 260℃. It withstands high temperatures after solar system exposure and resists low-temperature frost in winter, without hardening, cracking, or becoming brittle during long-term outdoor use.
2. Outstanding Protective Performance

• Waterproof & moisture-proof: Excellent sealing performance isolates moisture and water droplets in solar water tanks/pipelines, preventing germicidal lamp short circuits caused by dampness.

• Scratch & impact resistance: The elastic silicone material cushions slight external impacts and friction, avoiding lamp tube damage from bumps during transportation or installation.

• UV resistance: Added UV-resistant additives resist direct outdoor sunlight, preventing the silicone sleeve itself from aging and yellowing, while reducing UV erosion on lamp tube interfaces.

3. Safety & Eco-friendliness

• Excellent insulation: The insulation strength of silicone rubber is ≥20kV/mm, which effectively isolates the lamp tube from external metal components, avoids leakage risks, and ensures the electrical safety of solar systems.

• Food-grade certification: Compliant with FDA and LFGB standards, it is non-toxic and odorless. It does not react with water or ultraviolet rays generated by germicidal lamps, will not contaminate water quality, and is suitable for water purification/heating systems.

4. Chemical Corrosion Resistance

   It resists weak acids, weak alkalis, and scale cleaners commonly found in solar systems, without deformation due to corrosion, and is compatible with various water quality environments.

Core Functions & Application Scenarios

Core Functions

• Protect germicidal lamps: Isolate moisture, dust, and impact damage, extend the service life of germicidal lamps.

• Safe isolation: Insulate against electric leakage, avoid electric shock caused by accidental human contact with the lamp tube.

• Solar environment adaptation: Weather-resistant and UV-resistant, specially designed for the harsh working conditions of outdoor solar systems.

Application Scenarios

• Protection of ultraviolet germicidal lamps in household solar water purification all-in-one machines.

• Sealing and protection of built-in germicidal lamps in solar water heating system tanks.

• Anti-aging protection of external germicidal lamps in water purification equipment supporting solar thermal collection projects.
