Silicone rubber sheet 05

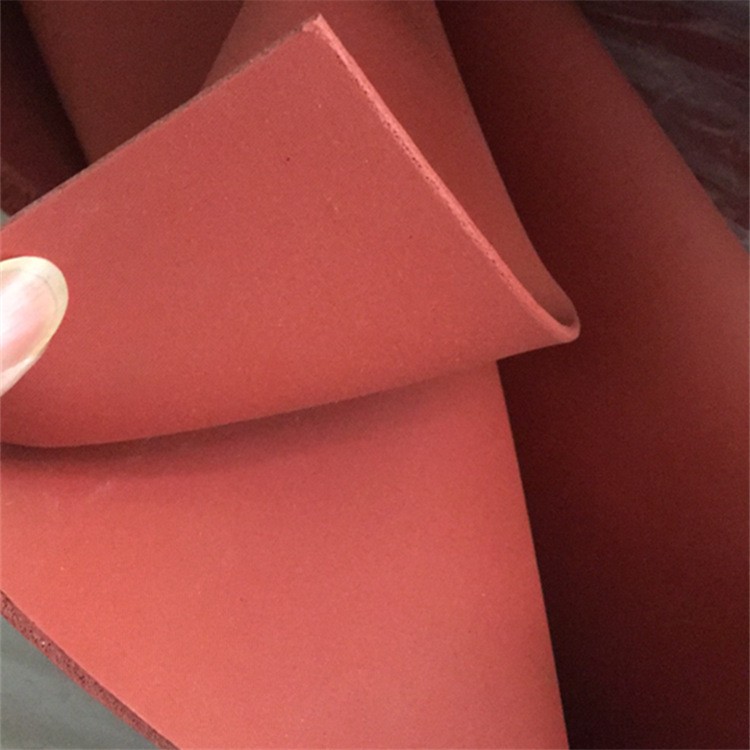

1. Core appearance and morphological characteristics
High appearance recognition: The main color is red, with uniform and full color, no miscellaneous spots, and a combination of visual identification and decoration. It can be quickly distinguished from other materials and is suitable for scenes with clear requirements for appearance color (such as equipment warning area sealing, specific industry identification components); The surface has a fine foam texture, with a soft touch and no burrs. The overall flatness is high, and the thickness tolerance can be controlled within ± 0.1mm.
Flexible form selection:

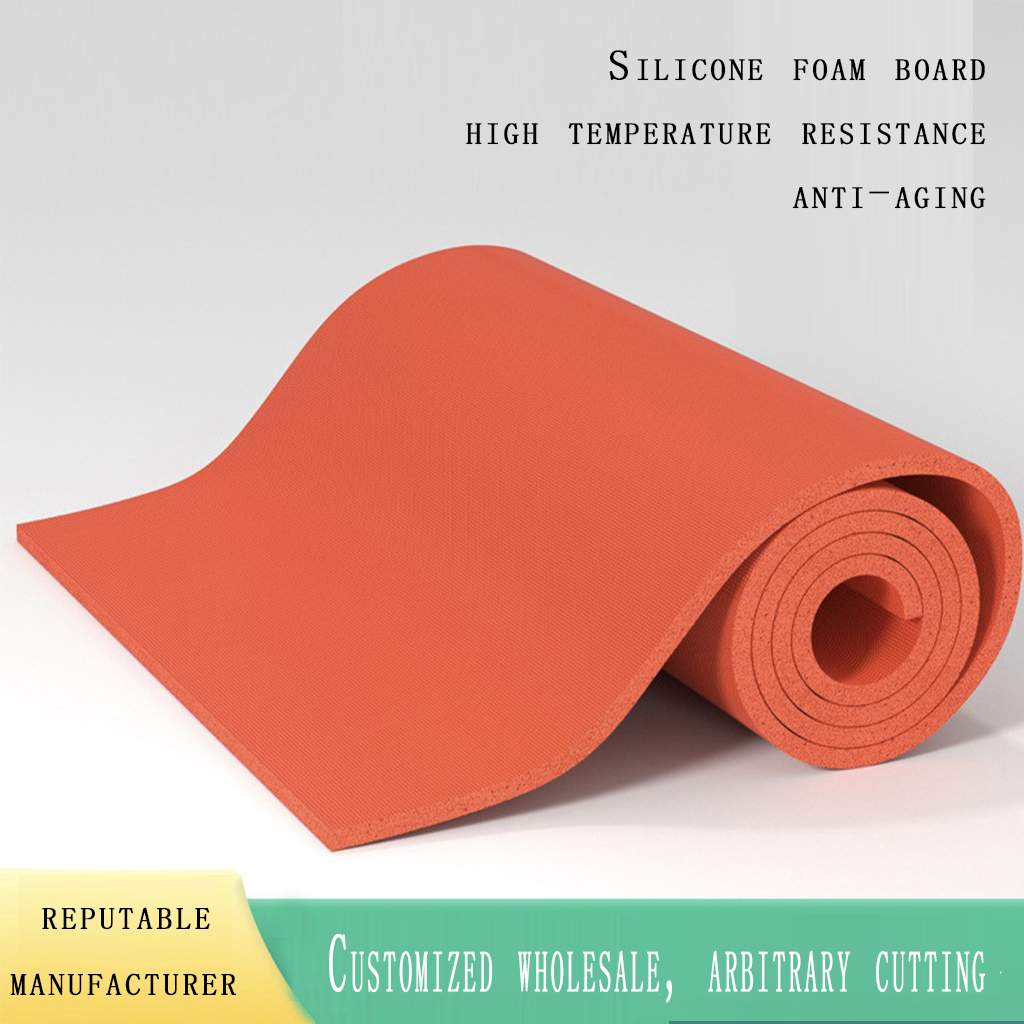

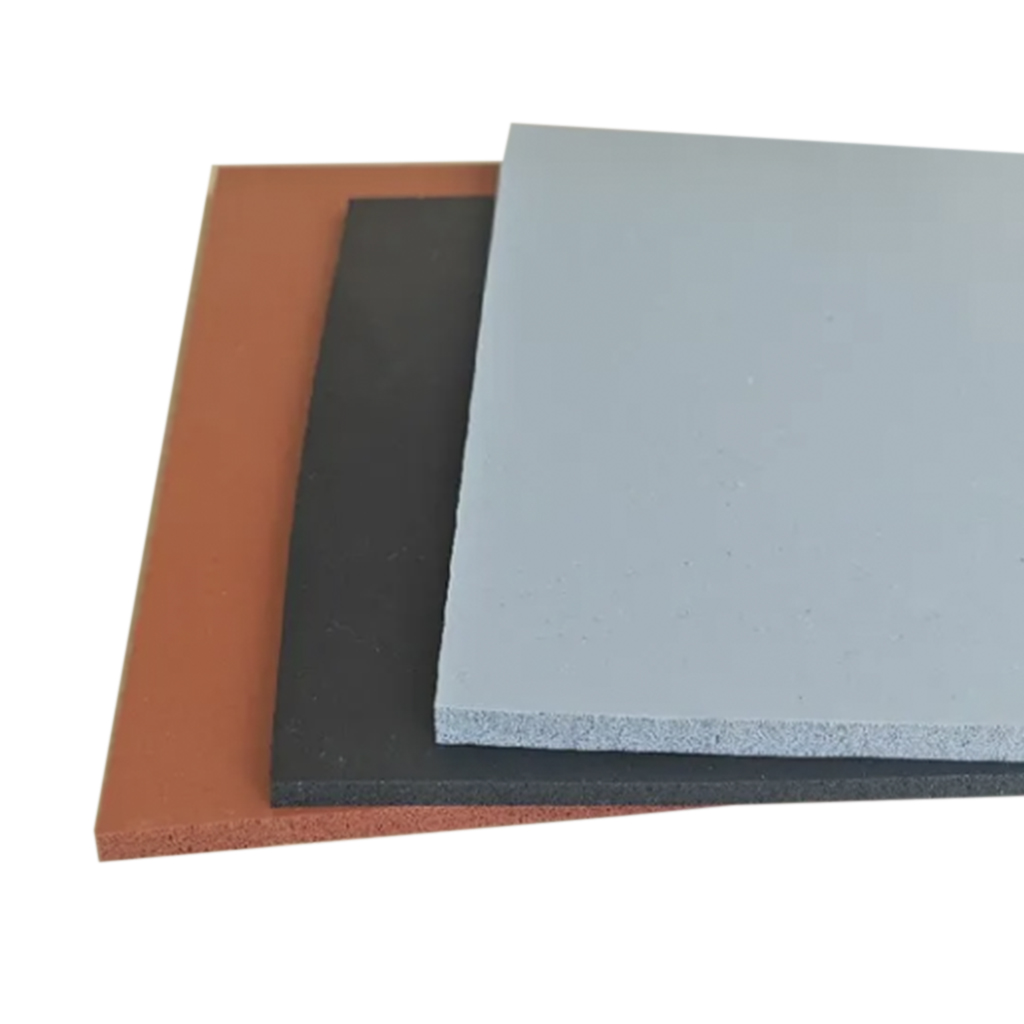

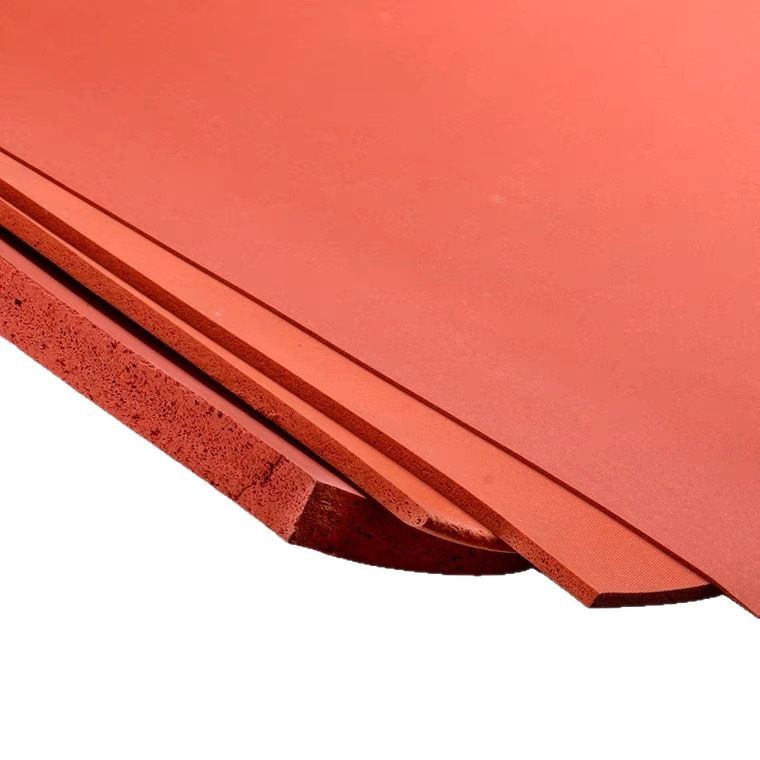

Foam board: with a regular thickness of 2-50mm, the size can be customized (such as 1000 × 2000mm, 1220 × 2440mm), suitable for cutting into specific shapes, used for local sealing, shock-absorbing pads, etc;

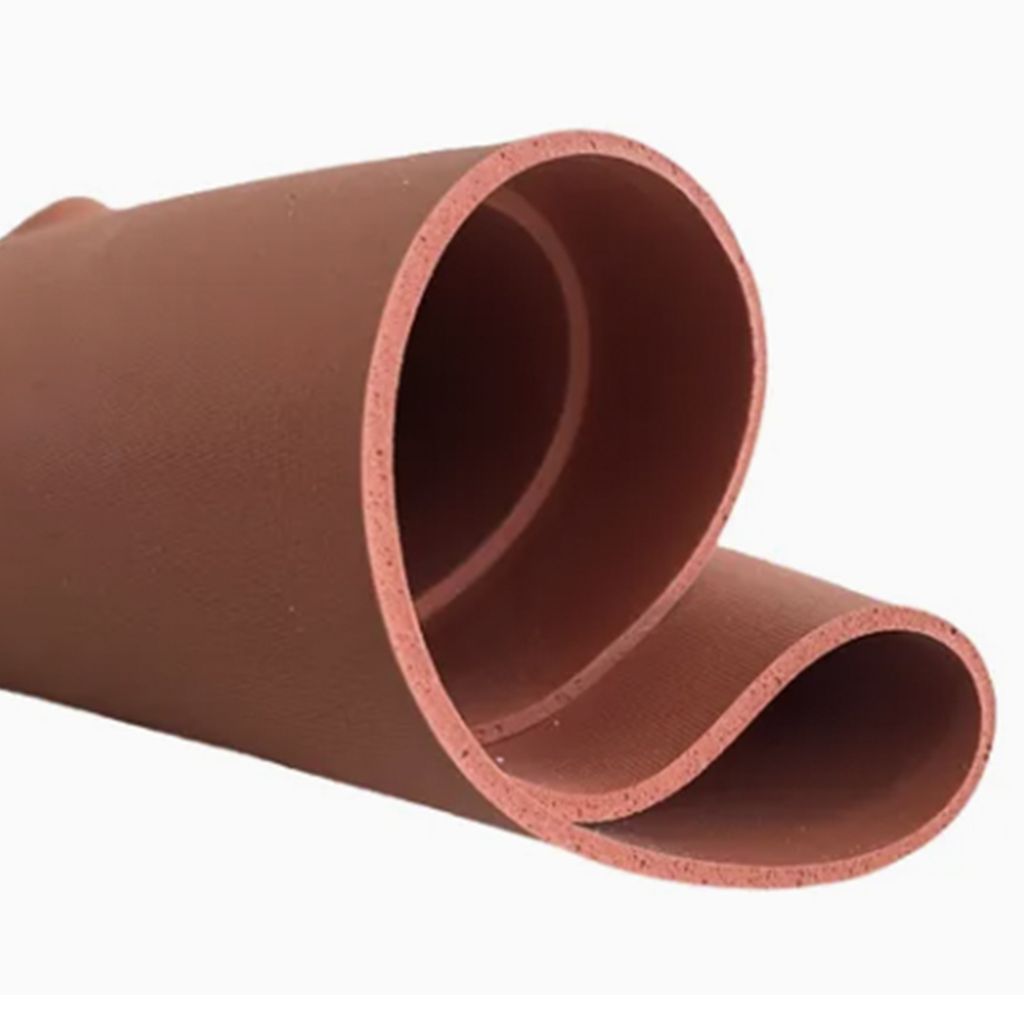

Foam roll material: width 0.5-2m, length customized according to needs, supports continuous cutting, adapts to the needs of long strip sealing and large-area laying in mass production, and has convenient transportation and storage.
2. Key performance advantages
Super high temperature resistance: Long term temperature resistance range -60 ℃ to 250 ℃, short-term can withstand high temperature of 280 ℃, does not soften, shrink, has no odor under high temperature conditions (such as equipment heat dissipation ports, oven surroundings), and has excellent high-temperature aging resistance. Its service life can reach more than 5 years in conventional environments.
High quality foam structure characteristics: Adopting high-density uniform foam technology, the foam pores are fine and evenly distributed (pore size 0.1-0.3mm), retaining the elasticity of silicone (compression permanent deformation rate ≤ 15%, tested at 180 ℃ × 70h), and possessing lightweight characteristics (density 0.3-0.6g/cm ³), while also having good thermal insulation (thermal conductivity ≤ 0.15W/(m · K)) and sound insulation, which can block heat transfer and reduce noise.
Durability and adaptability: As a "rubber silicone sheet", its surface has a certain degree of wear resistance, acid and alkali resistance, UV resistance, and is not easily corroded by external environments; At the same time, it has excellent elasticity and can tightly adhere to irregular surfaces, suitable for various scenarios such as sealing, shock absorption, and buffering (such as equipment gap sealing, mechanical component shock pads).
3. Security and application scenarios
Safety compliance: Made of environmentally friendly silicone raw materials, free of harmful substances such as heavy metals and VOCs, in compliance with RoHS standards. Some models can meet food contact level requirements (customized in advance), suitable for electronic, food machinery and other fields with environmental requirements.
Typical applications: It can be used for sealing and shock absorption in household appliances (ovens, microwaves), insulation and buffering in automobiles (engine peripherals), gap sealing in electronic devices (frequency converters), insulation and wrapping in industrial plants (high-temperature pipelines), etc. The red appearance is also suitable for equipment identification components that require visual distinction.
Please provide the following information to facilitate the accurate quotation of our factory personnel!
1. Dimensional drawings or samples of products
2. Product hardness color requirements (no relevant information we will be customized according to conventional industry standards for you)
3. The quantity requirements of the product (the more the relative number of customized goods, the more cost-effective)
4. The time of product production and processing (the time is related to the number of products and whether the mold is opened. The normal time is 3-10 days)
Rubber material description:
Silicone (VMQ): high temperature resistance, non-toxic, good water resistance, oil resistance general temperature resistance (-60~350)
1. Core appearance and morphological characteristics
High appearance recognition: The main color is red, with uniform and full color, no miscellaneous spots, and a combination of visual identification and decoration. It can be quickly distinguished from other materials and is suitable for scenes with clear requirements for appearance color (such as equipment warning area sealing, specific industry identification components); The surface has a fine foam texture, with a soft touch and no burrs. The overall flatness is high, and the thickness tolerance can be controlled within ± 0.1mm.
Flexible form selection:
Foam board: with a regular thickness of 2-50mm, the size can be customized (such as 1000 × 2000mm, 1220 × 2440mm), suitable for cutting into specific shapes, used for local sealing, shock-absorbing pads, etc;
Foam roll material: width 0.5-2m, length customized according to needs, supports continuous cutting, adapts to the needs of long strip sealing and large-area laying in mass production, and has convenient transportation and storage.
2. Key performance advantages
Super high temperature resistance: Long term temperature resistance range -60 ℃ to 250 ℃, short-term can withstand high temperature of 280 ℃, does not soften, shrink, has no odor under high temperature conditions (such as equipment heat dissipation ports, oven surroundings), and has excellent high-temperature aging resistance. Its service life can reach more than 5 years in conventional environments.
High quality foam structure characteristics: Adopting high-density uniform foam technology, the foam pores are fine and evenly distributed (pore size 0.1-0.3mm), retaining the elasticity of silicone (compression permanent deformation rate ≤ 15%, tested at 180 ℃ × 70h), and possessing lightweight characteristics (density 0.3-0.6g/cm ³), while also having good thermal insulation (thermal conductivity ≤ 0.15W/(m · K)) and sound insulation, which can block heat transfer and reduce noise.
Durability and adaptability: As a "rubber silicone sheet", its surface has a certain degree of wear resistance, acid and alkali resistance, UV resistance, and is not easily corroded by external environments; At the same time, it has excellent elasticity and can tightly adhere to irregular surfaces, suitable for various scenarios such as sealing, shock absorption, and buffering (such as equipment gap sealing, mechanical component shock pads).
3. Security and application scenarios
Safety compliance: Made of environmentally friendly silicone raw materials, free of harmful substances such as heavy metals and VOCs, in compliance with RoHS standards. Some models can meet food contact level requirements (customized in advance), suitable for electronic, food machinery and other fields with environmental requirements.
Typical applications: It can be used for sealing and shock absorption in household appliances (ovens, microwaves), insulation and buffering in automobiles (engine peripherals), gap sealing in electronic devices (frequency converters), insulation and wrapping in industrial plants (high-temperature pipelines), etc. The red appearance is also suitable for equipment identification components that require visual distinction.
Please provide the following information to facilitate the accurate quotation of our factory personnel!
1. Dimensional drawings or samples of products
2. Product hardness color requirements (no relevant information we will be customized according to conventional industry standards for you)
3. The quantity requirements of the product (the more the relative number of customized goods, the more cost-effective)
4. The time of product production and processing (the time is related to the number of products and whether the mold is opened. The normal time is 3-10 days)
Rubber material description:
Silicone (VMQ): high temperature resistance, non-toxic, good water resistance, oil resistance general temperature resistance (-60~350)
