LSR Injection Molding Vs Compression Molding: Which Process Should Your OEM Silicone Project Choose?

When sourcing a custom silicone rubber parts manufacturer OEM in China, one of the earliest and most consequential decisions is the molding process. The choice between LSR liquid silicone rubber custom molding and custom silicone compression molding OEM directly determines tooling investment, unit cost trajectory, dimensional consistency, and how quickly you can move from T0 samples to stable production.

This article compares the two processes with realistic industry ranges drawn from actual OEM manufacturing practice, so you can make a data-supported decision rather than relying on general claims.

1. How the Two Processes Actually Work

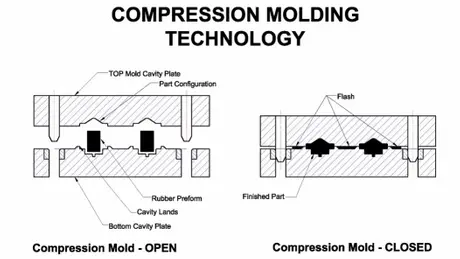

Compression molding uses solid high-consistency rubber (HCR / HTV). Pre-cut rubber blanks (preforms) are manually or semi-automatically placed into a heated mold cavity. The mold closes under pressure (typically 50–200 bar), and the material vulcanizes in place. Because the material is already solid, the process is relatively forgiving of simple geometries and thicker cross-sections. Tooling is simpler (usually two-plate molds), which keeps the entry cost lower and allows faster first-article delivery—T0 sample silicone molding is commonly achievable in 7–14 days after drawing approval.

LSR injection molding meters two-component liquid silicone through a static mixer and injects it into a precision mold under high pressure. The mold is kept hot (typically 160–180 °C) while the cold-runner system keeps the material from curing prematurely. The process is closed and highly automated. Because liquid silicone has very low viscosity, it fills thin walls, micro-features, and complex undercuts with excellent consistency. The trade-off is higher tooling complexity (precision shut-offs, cold runners, tight venting) and therefore higher initial investment.

2. Realistic Side-by-Side Comparison (Industry Ranges)

The numbers below reflect typical ranges observed by Chinese and international silicone OEMs for industrial sealing components, gaskets, and custom molded parts. Exact figures always depend on part size, cavity count, and tolerance requirements.

Note: Tooling cost ranges are indicative for China-based OEMs producing industrial seals and gaskets. Complex geometries, multi-cavity tools, or hardened stainless steel (S136) will push numbers higher. Always request a formal quote based on your specific CAD and volume.

3. Decision Logic – When Each Process Makes Sense

The correct choice is rarely about which process is “better” in absolute terms. It is about matching the process economics and technical strengths to your project constraints.

Choose Compression Molding when:

• You need fast T0 / first-article samples and design may still change.

• Annual volume is expected to stay under ~50,000 pieces (or total project volume is modest).

• The part geometry is relatively simple (flat gaskets, basic O-rings, thick-walled seals).

• Tooling budget is limited and you want to minimize upfront risk.

• Speed to market is more important than the absolute lowest unit cost at high volume.

Choose LSR Injection Molding when:

• You anticipate high annual volumes (typically > 50k–100k) where faster cycles and lower labor offset the higher tooling cost.

• The part has complex geometry, thin walls, undercuts, or requires tight dimensional control (±0.10 mm or better).

• Medical-grade, FDA food-contact, or low-extractable requirements favor platinum-cured LSR and a cleaner closed process.

• You need consistent multi-cavity production with minimal secondary trimming.

• Insert molding or overmolding onto plastic/metal components is required at scale.

4. A Practical Hybrid Approach Used by Many OEMs

For many custom silicone seals and gaskets manufacturer OEM projects, the most cost-effective path is hybrid: start with compression molding for T0 samples and early pilot runs (low tooling risk, fast feedback), freeze the design, then transfer to multi-cavity LSR tooling once volume and geometry justify the investment. This staged approach reduces the chance of expensive tooling modifications after the design has already been locked.

5. Information Your Manufacturer Needs for an Accurate Recommendation

Experienced factories ranking for “custom silicone molding China OEM” can only give a reliable process recommendation when they receive:

• Complete 2D drawings + 3D STEP with critical tolerances marked

• Expected annual volume and first-order quantity

• Operating temperature range and chemical media

• Target hardness (Shore A) and any compression-set requirement

• Certification needs (FDA 21 CFR 177.2600, LFGB, USP Class VI, UL94, etc.)

• Whether the part will be overmolded or assembled with inserts

Conclusion

There is no universal winner between LSR injection and compression molding. Compression molding remains the rational choice for prototypes, low-to-medium volumes, and simpler geometries because of its lower tooling barrier and shorter lead time. LSR becomes the better long-term economic and technical solution once volume, precision, or regulatory requirements rise. Working with a custom silicone parts manufacturer industrial that offers both processes under one roof gives you the flexibility to start lean and scale efficiently—from the first T0 sample all the way to high-volume production.
