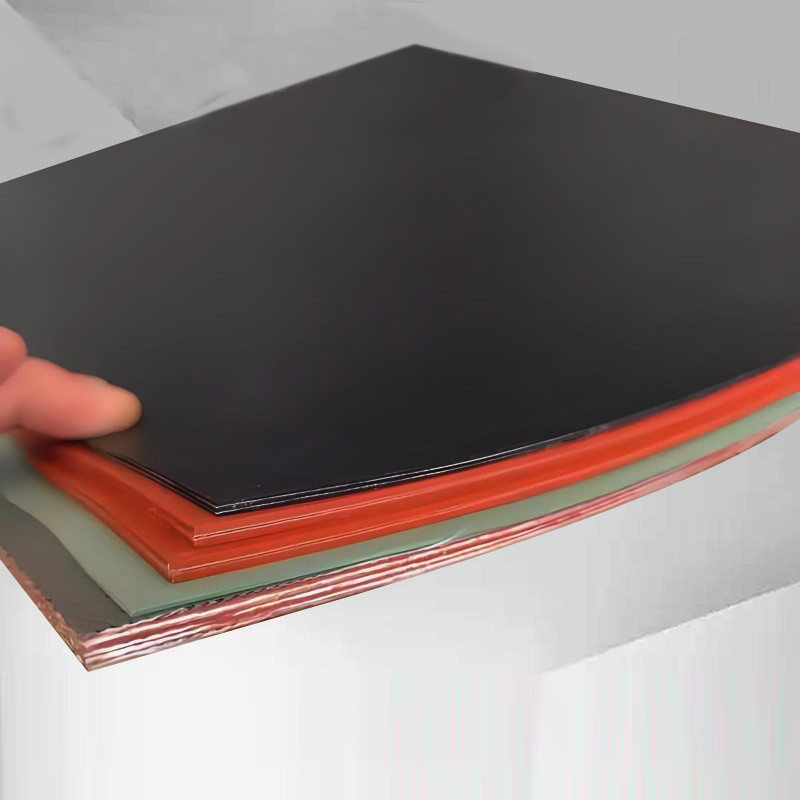

Solar module cloth silicone board high temperature resistant laminating machine silicone board photovoltaic panel buffer pad thermal sublimation

1、Core functional positioning

Specially designed for the lamination process of solar modules, it is mainly used for load-bearing, buffering, and heat transfer inside the laminating machine, ensuring precise bonding and bubble free encapsulation of multi-layer materials such as photovoltaic glass, EVA film, solar cells, and backboards under high temperature and high pressure, ensuring the sealing and power generation efficiency of photovoltaic modules.

2、 Key performance advantages

Super high temperature resistance: The long-term temperature resistance range can reach -50 ℃ to 280 ℃, and the short-term can withstand high temperatures above 300 ℃. Under the normal working temperature of 130-180 ℃ of the laminating machine, there is no deformation, aging, or release of harmful substances, ensuring long-term stable use.

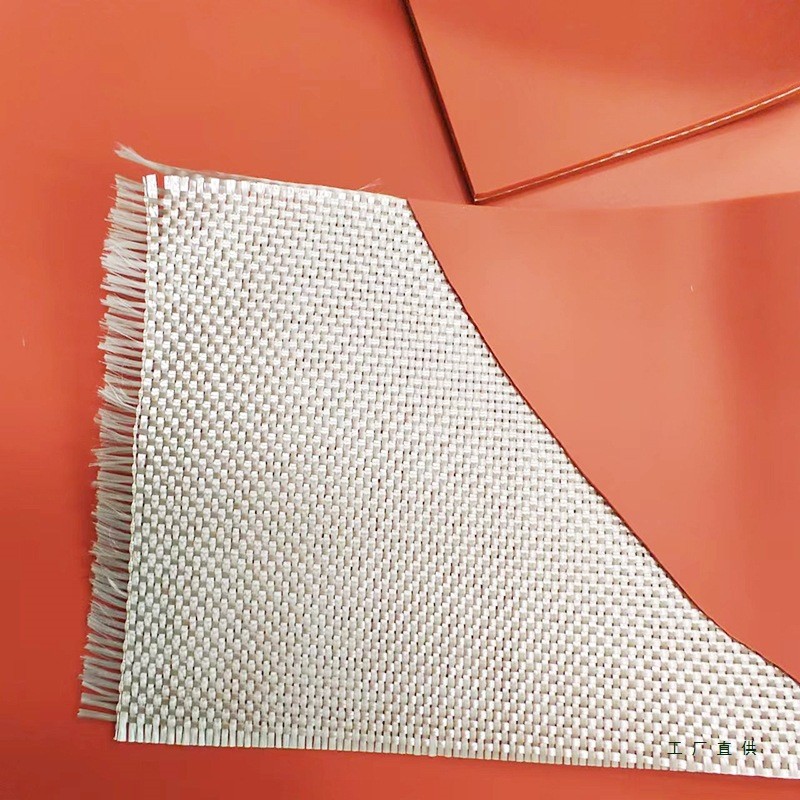

Sandwich reinforcement structure: Internally composite high-strength glass fiber cloth or polyester cloth, greatly improving tensile strength (≥ 8MPa) and tear resistance (≥ 35kN/m), avoiding damage to the silicone sheet due to uneven pressure during the lamination process, and extending the service life (can be used more than 100000 times under normal working conditions).

Excellent heat transfer uniformity: The thermal conductivity of the silicone substrate is stable, and combined with the structural support of the sandwich layer, it can evenly transfer the heat of the laminating machine to each layer of the photovoltaic module, avoiding packaging defects caused by local overheating or uneven temperature (such as insufficient melting of EVA and hidden cracking of battery cells).

High sealing and weather resistance: The surface is smooth and has excellent elasticity (elongation ≥ 600%), which can tightly adhere to the surface of photovoltaic modules and isolate air and water vapor; At the same time, it has the ability to resist ultraviolet radiation, ozone, acid and alkali corrosion, and is suitable for the long-term outdoor use of photovoltaic modules.

3、 Form and processing adaptability

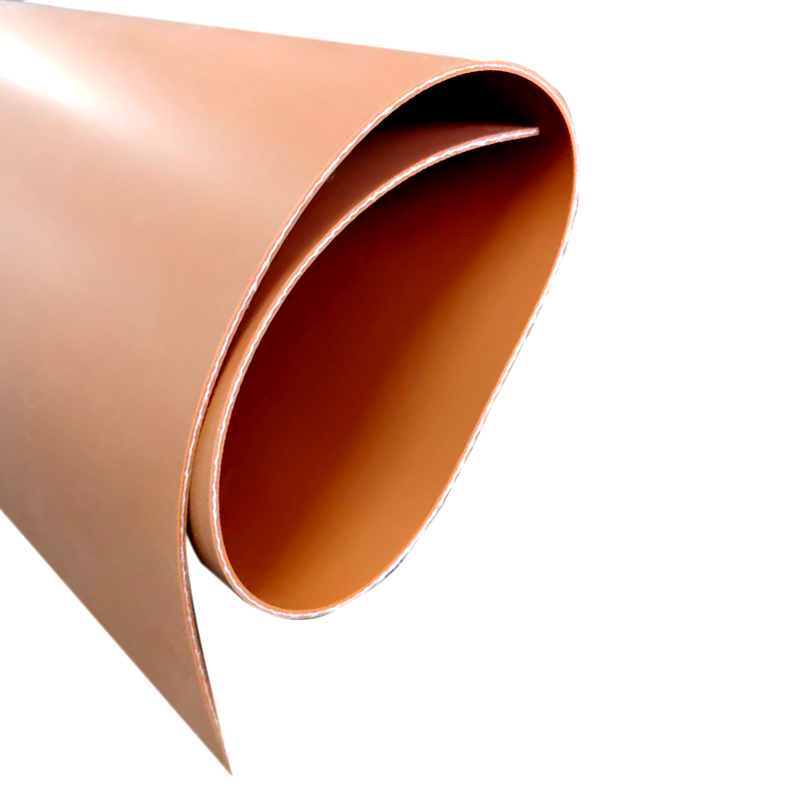

Flexible in form, it can provide rolls (conventional width 1.2-2.2m, length customized as needed) and sheets (conventional thickness 0.5-5mm) to meet the adaptation needs of different size laminating machines (such as monocrystalline silicon and polycrystalline silicon component production lines).

The surface can be treated with anti slip or anti stick according to the needs, which is easy to clean and non stick. After lamination, it can quickly separate from the photovoltaic module, reducing production process time.

4. Safety and Compliance

Using environmentally friendly silicone raw materials, it does not contain harmful substances such as heavy metals and VOCs, and complies with environmental standards such as RoHS and REACH in the photovoltaic industry. It will not cause pollution to photovoltaic cells or packaging materials, ensuring the long-term power generation performance of the components.

I can help you target a certain type of photovoltaic module (such as monocrystalline/polycrystalline modules).

Please provide the following information to facilitate the accurate quotation of our factory personnel!

1.Dimensional drawings or samples of products

2. Product hardness color requirements (no relevant information we will be customized according to conventional industry standards for you)

3. The quantity requirements of the product (the more the relative number of customized goods, the more cost-effective)

4. The time of product production and processing (the time is related to the number of products and whether the mold is opened. The normal time is 3-10 days)

Rubber material description:

Silicone (VMQ): high temperature resistance, non-toxic, good water resistance, oil resistance general temperature resistance (-60~350)
