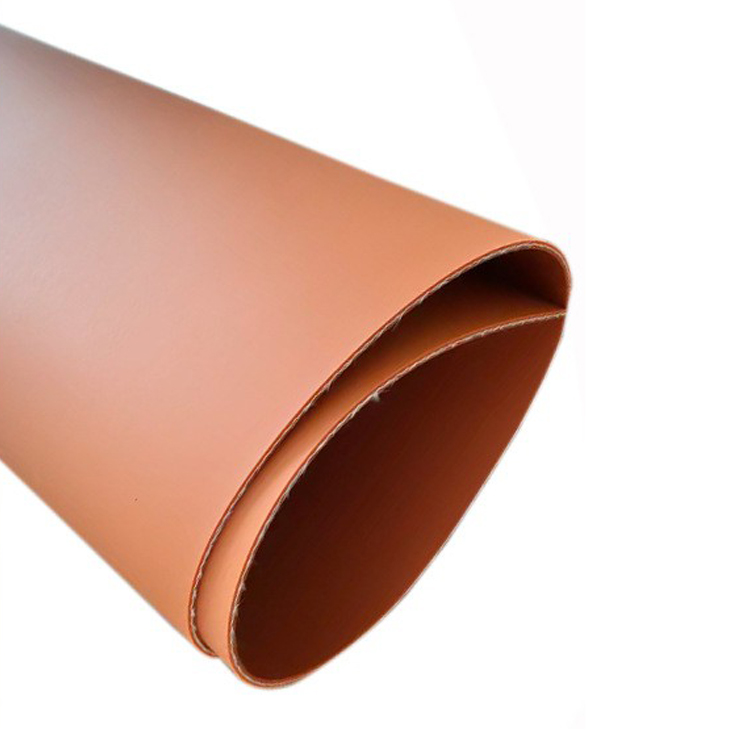

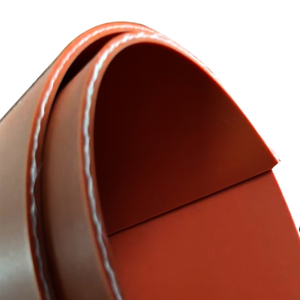

Laminated silicone sheet
qiniu
1. Core performance highlights
Strong structural reinforcement characteristics: Internally composite with 1-3 layers of fiber cloth, the tensile strength is increased to ≥ 8.5MPa (about 5-7MPa for ordinary silicone panels), the tear strength is ≥ 38kN/m, and it can withstand large tensile or compressive forces without breaking or deforming, especially suitable for long-term stress conditions (such as laminating machines and conveyor belts).
Excellent temperature resistance: retaining the temperature resistance advantage of silicone, it can withstand temperatures ranging from -50 ℃ to 280 ℃ for a long time and 300 ℃ for a short period of time. The fiber cloth and silicone layer are tightly bonded and not separated at high temperatures, and are not brittle or cracked at low temperatures. It is suitable for high and low temperature equipment such as ovens and vulcanizers.
Stable sealing and elasticity: The surface silicone layer has excellent elasticity (elongation ≥ 550%), compression permanent deformation rate ≤ 10% (180 ℃× 70h), and can tightly adhere to irregular surfaces, achieving waterproof and dustproof sealing; At the same time, the fiber cloth reinforcement layer can avoid excessive deformation of silicone and ensure long-term stability of the sealing effect.
Wear resistance and weather resistance: The surface silicone layer is wear-resistant and can resist mechanical friction or material scratching; Overall, it has UV resistance, ozone resistance, and weak acid and alkali resistance. It is not easily aged when used outdoors or in chemical environments, and its service life is extended by more than 50% compared to ordinary silicone panels.
2. Structure and Custom Attributes

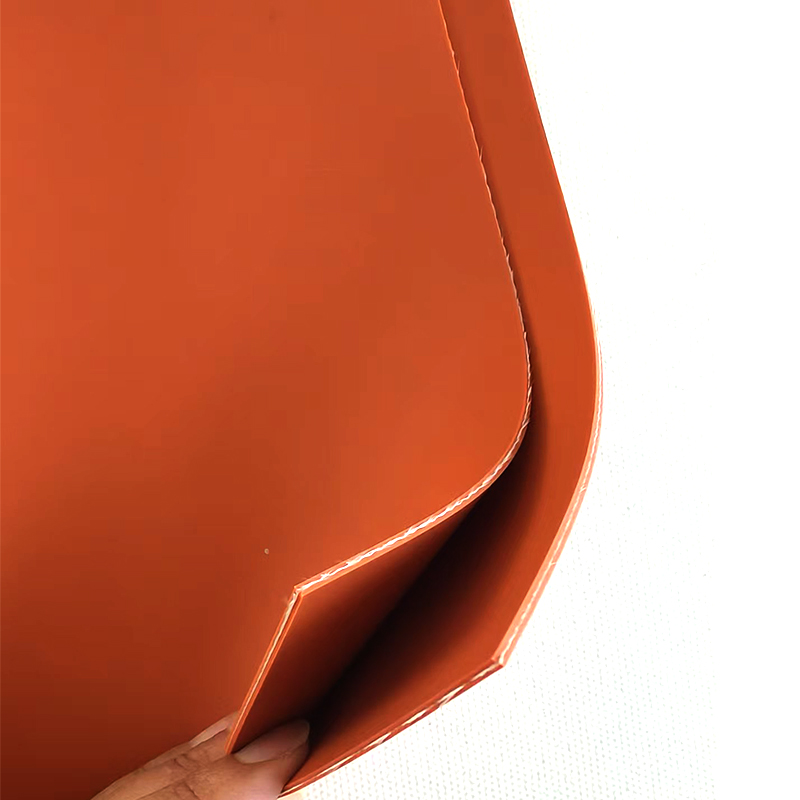

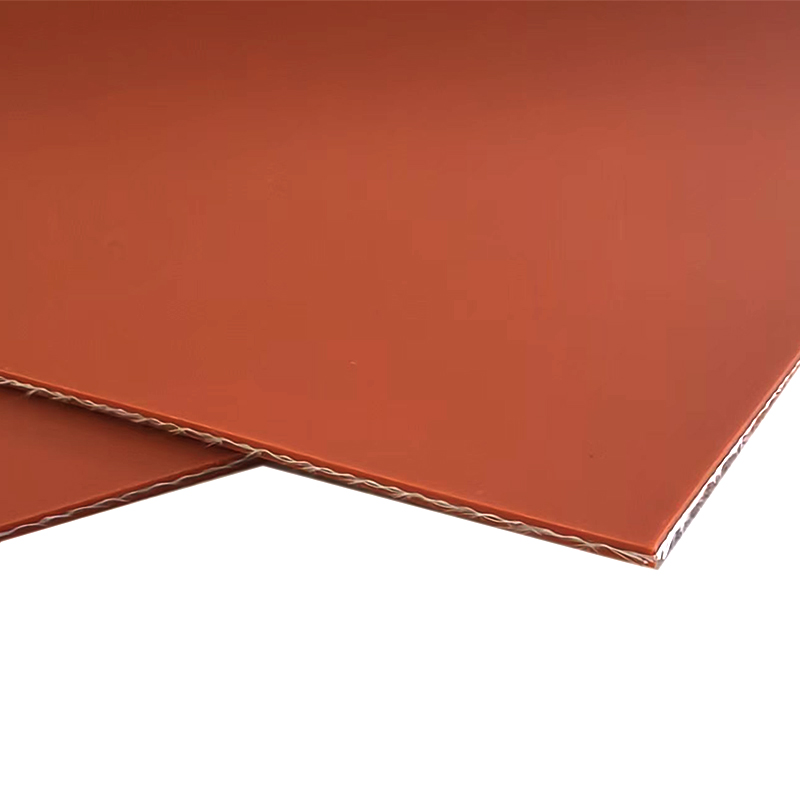

Core structure: Adopting a sandwich composite structure of "silicone fiber cloth silicone", the fiber cloth is completely embedded in the silicone layer, with no risk of delamination; Fiber cloth can be selected from glass fiber cloth (with excellent high temperature resistance) and polyester cloth (with good flexibility), suitable for different scene needs.
Conventional specifications: thickness 1-10mm (including fabric layer), conventional sizes 1000 × 2000mm, 1220 × 2440mm, thickness tolerance ≤± 0.1mm, surface can be smooth (easy to clean) or textured (anti slip, friction coefficient ≥ 0.8).
Customized service: The number of fiber cloth layers (enhanced strength) and silicone hardness (Shore A 45-70 degrees) can be adjusted as needed; Support color customization (default black, red, white); It can also be cut into irregular gaskets or strip-shaped seals to fit the specific installation dimensions of the equipment.
3. Applicable scenarios
Industrial equipment sealing: used for laminating machines, vulcanizing machines, and oven door seals, which can withstand high temperature and high pressure and are not easily damaged;
Mechanical buffering and load-bearing: As a shock absorber pad for machine tool worktable, conveyor belt lining, and printing machine rubber roller pad, it balances buffering and wear resistance;
In the field of new energy and electronics: load-bearing pads suitable for photovoltaic module lamination processes, high-voltage seals for battery equipment, temperature resistant and tensile resistant;
Transportation and Infrastructure: Used for sealing gaskets around automotive engines, expansion joint buffers in tunnels or bridges, to resist vibration and environmental erosion.
Product name:Laminated silicone rubber sheet
Specifications: Thickness: 0.5 mm to 20 mm Width: within 1.8 m Length: roll material (usually 10 m per roll)
1. Core performance highlights
Strong structural reinforcement characteristics: Internally composite with 1-3 layers of fiber cloth, the tensile strength is increased to ≥ 8.5MPa (about 5-7MPa for ordinary silicone panels), the tear strength is ≥ 38kN/m, and it can withstand large tensile or compressive forces without breaking or deforming, especially suitable for long-term stress conditions (such as laminating machines and conveyor belts).
Excellent temperature resistance: retaining the temperature resistance advantage of silicone, it can withstand temperatures ranging from -50 ℃ to 280 ℃ for a long time and 300 ℃ for a short period of time. The fiber cloth and silicone layer are tightly bonded and not separated at high temperatures, and are not brittle or cracked at low temperatures. It is suitable for high and low temperature equipment such as ovens and vulcanizers.
Stable sealing and elasticity: The surface silicone layer has excellent elasticity (elongation ≥ 550%), compression permanent deformation rate ≤ 10% (180 ℃× 70h), and can tightly adhere to irregular surfaces, achieving waterproof and dustproof sealing; At the same time, the fiber cloth reinforcement layer can avoid excessive deformation of silicone and ensure long-term stability of the sealing effect.
Wear resistance and weather resistance: The surface silicone layer is wear-resistant and can resist mechanical friction or material scratching; Overall, it has UV resistance, ozone resistance, and weak acid and alkali resistance. It is not easily aged when used outdoors or in chemical environments, and its service life is extended by more than 50% compared to ordinary silicone panels.
2. Structure and Custom Attributes
Core structure: Adopting a sandwich composite structure of "silicone fiber cloth silicone", the fiber cloth is completely embedded in the silicone layer, with no risk of delamination; Fiber cloth can be selected from glass fiber cloth (with excellent high temperature resistance) and polyester cloth (with good flexibility), suitable for different scene needs.
Conventional specifications: thickness 1-10mm (including fabric layer), conventional sizes 1000 × 2000mm, 1220 × 2440mm, thickness tolerance ≤± 0.1mm, surface can be smooth (easy to clean) or textured (anti slip, friction coefficient ≥ 0.8).
Customized service: The number of fiber cloth layers (enhanced strength) and silicone hardness (Shore A 45-70 degrees) can be adjusted as needed; Support color customization (default black, red, white); It can also be cut into irregular gaskets or strip-shaped seals to fit the specific installation dimensions of the equipment.
3. Applicable scenarios
Industrial equipment sealing: used for laminating machines, vulcanizing machines, and oven door seals, which can withstand high temperature and high pressure and are not easily damaged;
Mechanical buffering and load-bearing: As a shock absorber pad for machine tool worktable, conveyor belt lining, and printing machine rubber roller pad, it balances buffering and wear resistance;
In the field of new energy and electronics: load-bearing pads suitable for photovoltaic module lamination processes, high-voltage seals for battery equipment, temperature resistant and tensile resistant;
Transportation and Infrastructure: Used for sealing gaskets around automotive engines, expansion joint buffers in tunnels or bridges, to resist vibration and environmental erosion.
Product name:Laminated silicone rubber sheet
Specifications: Thickness: 0.5 mm to 20 mm Width: within 1.8 m Length: roll material (usually 10 m per roll)
